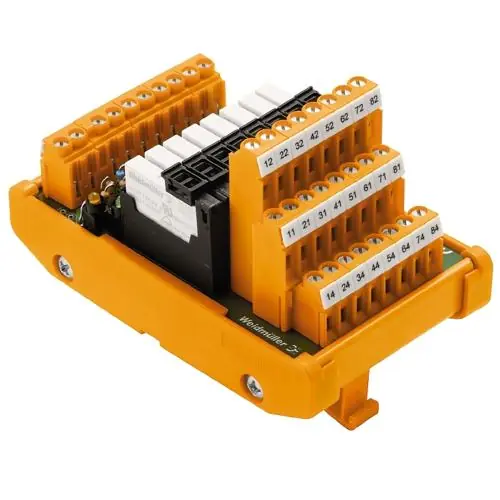

Weidmuller 1457170000 – Discover the power of Weidmuller’s Interfaces with Relays, designed to simplify connectivity between PLCs or other controllers. These interfaces feature relay bases (RSM) with common positive and negative connections. Available in groups of 4, 8, or 16 RCL relays (12.7 mm) or RSS relays (6.1 mm), they offer versatility in relay options. You can choose between 1 or 2 CO contacts with relays ranging from 16/8/6 A and voltages spanning from 5 to 230 V. The connection to the controller can be achieved through pluggable connectors or direct cabling with IEC 60603-13 connectors. With options for screw, tension clamp, or PUSH IN connections, these interfaces are adaptable to various installation requirements. They are also compatible with Weidmuller’s solid-state relays. The relay range ensures galvanic isolation between input/output and adjacent contacts, providing a safe adaptation of voltages between controllers and field elements. Upgrade your connectivity with Weidmuller’s Interfaces with Relays, delivering reliable and adaptable solutions.
Stripping Length
6 mm
Manufacturer
Weidmuller
Component
Interface Module W/ Relay
Type Of Connection
Screw
Led Status Display Per Relay
Green
Operating Voltage
24 VDC
Number Of Relays
16
Connection (Field Side)
LL3R 5.08 mm
Relay Type
RSS
Input Current
7.1 Ma
